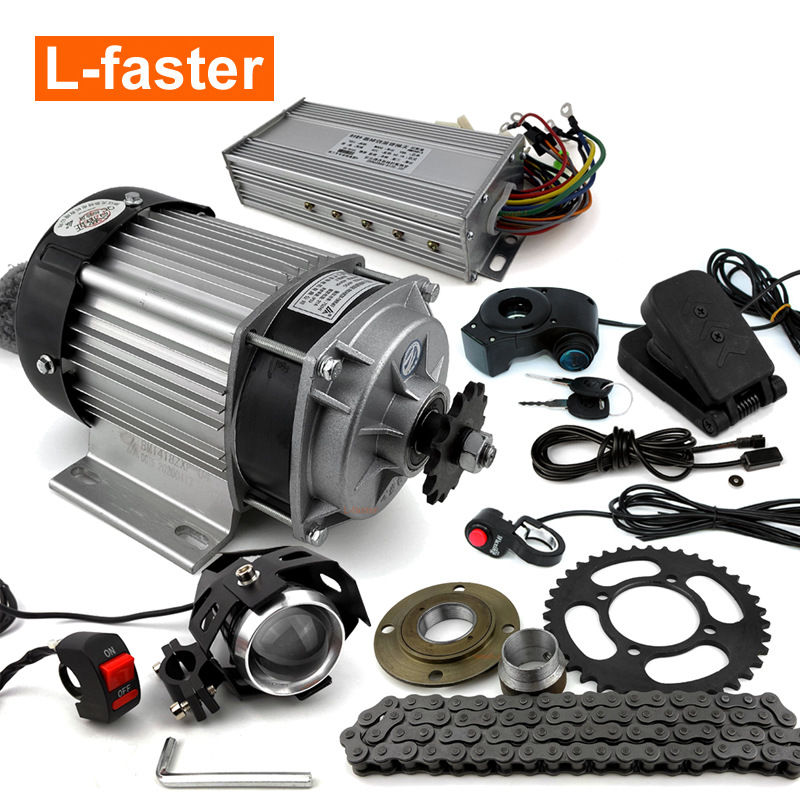

Overview

High Torque: Provides strong pulling power for heavy loads up to 500kg

Easy Installation: Simple mounting process with chain-driven connection

Reverse Function: Controller includes reverse gear for backward movementVersatile Compatibility: Suitable for

tricycles, wheelbarrows, and carts

Complete Kit: Includes all necessary components except battery and charger

Specifications

Voltage: 48V/60V

Power: 750W

Motor Type: Brushless gear motor

Chain: #420 chain with 70 links

Sprocket: 38 teeth, 31mm inner diameter

Motor Weight: Approximately 5.2kg

Speed: Up to 20km/h for 26-inch tricycle

Max Load Capacity: 500kg

Throttle Options: Thumb throttle, twist throttle, or pedal throttle

Additional Components: LED headlight, light switch, reverse switch, brake lever/sensor

Packing List

brushless gear motor1

motor controller1

#420 chain1

sprocket1thumb throttle1

LED headlight1

light switch1

reverse switch1

brake lever*1
